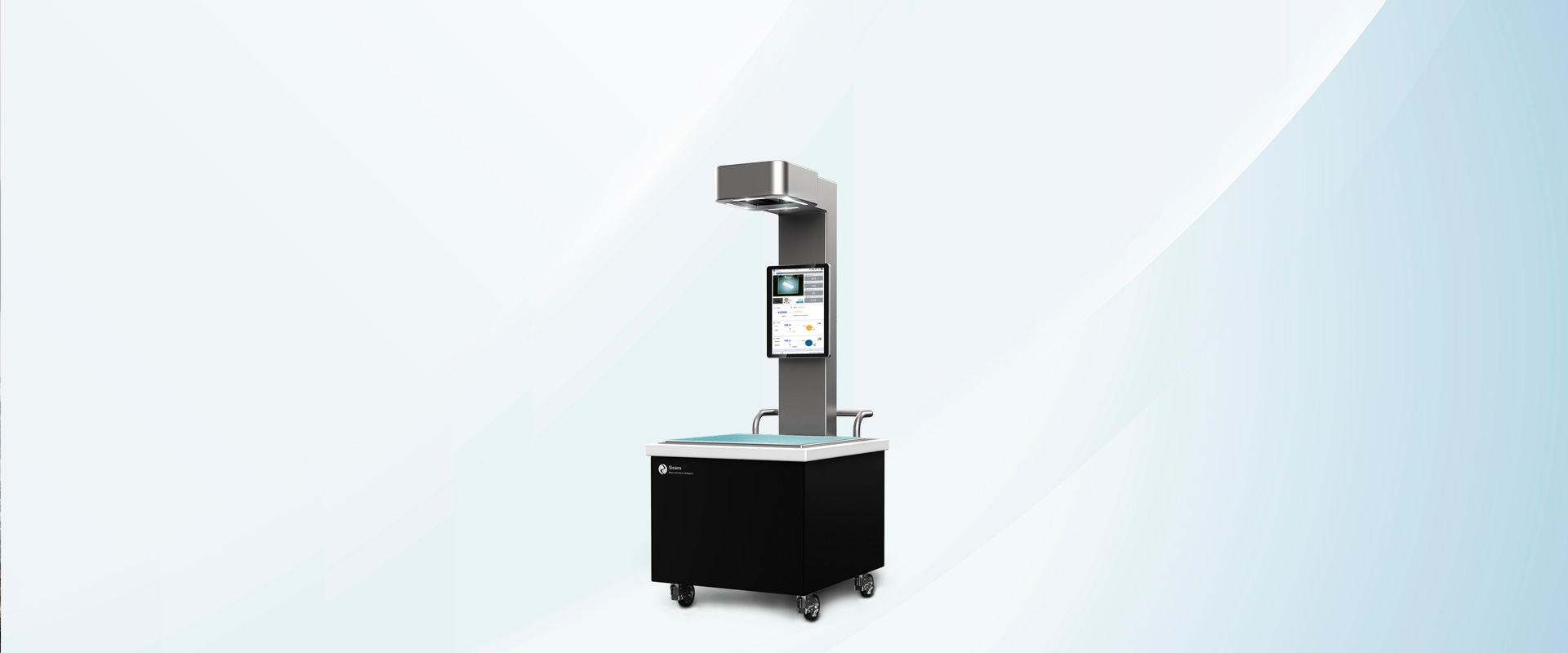

ScanMaster M1 is designed to assist companies with specific needs in achieving cost-effective and efficient management. Its exceptional performance is enhanced by its mobility, allowing use anywhere in the warehouse without the need for a power supply, thereby significantly improving equipment availability and utilization. Additionally, ScanMaster M1 can be equipped with 5G communication technology, enabling accurate identification marks or object recognition through AI cloud computation. This approach closely mirrors human measurement methods when assessing various objects. The comprehensive dimensional data provided offers valuable support for management and problem tracking. Beyond being a mere solution, ScanMaster M1 represents a new generation of mobile smart object property acquisition systems that are both cost-effective and adaptable.
| Model | ScanMaster M1 |
| Weighing Range | 60g～60kg |
| Weighing Accuracy | ±10g |
| Dimensional Measurement Range | 30×30×30～600×600×600mm |
| Dimensional Measurement Accuracy | ±5mm(standard cube)±10mm(irregular shape) |
| Acquisition Speed | 600ms |
| Acquisition Surface(mm) | 800(w)×700(0) |
| Display Interaction | LCD Vertical Touch Screen |
| Bar Code Scanning | The bar code is automatically collected from the top of items |
| Image Traceability | A panoramic photo of each item,a picture of the product label with a barcode, and a video of the item detection |
| Battery Life | More than 10 hours of continuous operation |
| Communication Protocol | Support TCP/IP,Profinet,Modbus-TCP,Modbus-RTU |
| Job Prompt Mode | Sound and recessed ambient light |
